A little bit more about the plans...
A few more things to be on the lookout for.
January 22, 2015 I forgot to post this list...
until I saw a post...
Flo, a builder from Germany, made a post asking about a post I had made about a month ago. My post raised a few questions about what all is included in the Delta plans (the Delta plans are a part of the Radial plans package). He made a list. I made a post in response to his list with a list of pages I thought he might be missing. I clearly saw one that he was missing and assumed that Steen Aero wasn't sending out any of the "403" series of drawings because they put all that stuff on CAD.There was one important piece that is missing when they did this. It was the sway wire mount for the new three-piece wing.
Below is a list of the pages you need to have. And... here is a shot of the sway wire mount that is missing (and I assume will be shipped from now on with all future Delta and Radial plans).
Note: Flo (aka fox_mike on the Biplane Forum) created most of this list. I just did the add on at the bottom.
Sybolt Standard plans:
14 sheets ( each one is saying page X of 14 in the left lower corner, so this should be the correct amount.)
Delta supplement plans:
13 sheets in a pretty big format (ca. 91.5cm X 55.5cm, I dont kow how i'ts called in the US):
701 : Fuel Tank (wing center section tank)
702: Fuel Gauge
404 (1/2): Upper Wing Panel
404 (2/2): Upper Wing Details
SB3PW-212: Outboard Rib Assymbley
SB3PW-213: Inborad Rib Assy
SBSPW-211: Center Section Ribs
SB3PW-001: Center Section Front Spar
SB3PW-002: Center Section rear spar
SB3PW-209: Center Section Spars
SB3PW-210: Center Section Assembley
SBSPW-214: Cabane Mounts
SBSPW-215: Spar Locations
65 sheets of a smaller format (11 x 17 in)
SB3PW-003: Wing Attach
SB3PW-004: Wing Attach
SB3PW-005: Wing Attach
SB3PW-006: Wing Attach
SB3PW-007: Wing Attach
SB3PW-007: Wing Attach
SB3PW-008: Wing Attach
SB3PW-010: Wing Attach
SB3PW-011: Wing Attach
SB3PW-012: Cabane Attach v
SB3PW-013: Cap Strips
SB3PW-014: Outboard Rib Ply Sheet
SB3PW-015: Cap Strips
SB3PW-016: Inboard Rib Ply.Sheet
SB3PW-017: Nose Rib Outboard
SB3PW-018: Nose Rib Inboard
SB3PW-019: Doubler
SB3PW-020: Doubler
SB3PW-021: Doubler
SB3PW-022: Doubler
SB3PW-023: Doubler
SB3PW-024: Doubler
SB3PW-025: Doubler
SB3PW-026: Doubler
SB3PW-027: Attach Angle
SB3PW-028: Attach Angle
SB3PW-029: Bushing
SB3PW-030: Compression Tube
SB3PW-031: Bushing
SB3PW-032: Spacer
SB3PW-033: Link
SB3PW-034: Bushing
SB3PW-035: Spacer
SB3PW-036: Link
SB3PW-037: Trailing Rib
SB3PW-038: Trailing Rib
SB3PW-039: Trailing Rib
SB3PW-040: Grab Rail
SB3PW-041: Nail Strips
SB3PW-040: Grab Rail
SB3PW-042: Tank Support
SB3PW-043: Center Section Outboard Skin
SB3PW-044: Center Section Top Skin
SB3PW-045: Center Section Bottom Skin
SB3PW-046: Center Section Leading Edge
SB3PW-047: Tank Support
SB3PW-048: Cabane Attach
SB3PW-049: Cabane Attach
SB3PW-050: Sway Wire Mounts
SB3PW-051: Sway Wire Mounts
SB3PW-052: Filler
SB3PW-053: Cabane Attach
SB3PW-054: Cabane Attach
SB3PW-055: Filler
SB3PW-056: Filler
SB3PW-057: Doubler
SB3PW-201: Wing Attach
SB3PW-202: Wing Attach Assy Forward Right
SB3PW-203: Wing Attach Assy Rear Left
SB3PW-204: Wing Attach
SB3PW-205: Sway Wire Mounts
SB3PW-206: Landing Wire Mount
SB3PW-207: Compression Tube Assy
SB3PW-208: Nail Strips
SB3PW-216: Forward Strut
SB3PW-217: Rear Strut
Radial supplement plans:
5 sheets of the big format:
210-1 : Fuselage weld assembley
210-2 : Fuselage details
301-1 : Control System
301-2 : Control System details
250 : Landing gear assembley
The Radial plans... (these are not being sent out any more)
14-2500 : Shock Strut Landing Gear
403 1 of 5: Center Section Attach Detail
403 2 of 5: Spars and Details for Center Section
403 3 of 5: Center Section

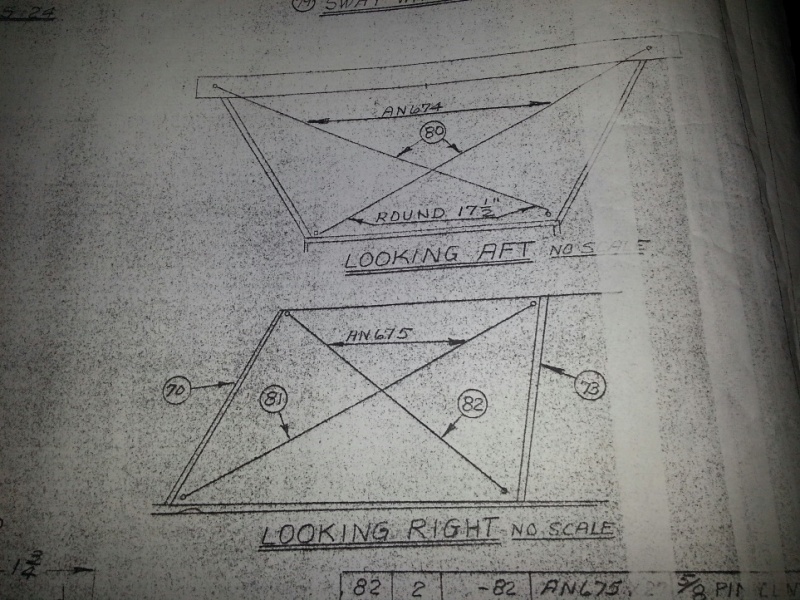

403 4 of 5: Center Section You need to have part of the following. It shows the sway wire mounting 403 5 of 5: Center Section
